The TC-H906 high-power infrared radiator is able to produce an average transmission output of 15watts and can be switchable to 50% low power, making it suitable for use in larger halls and smaller
rooms. The radiator’s integrated power supply unit is automatically switched on and off by the carriersignals from the transmitter by means of an high frequency sensor. The radiator is equipped with

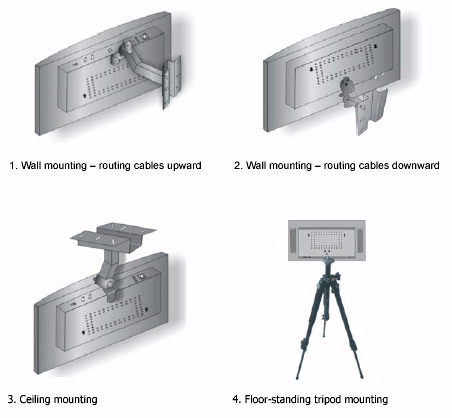

automatic gain control to ensure the infrared diodes function with maximum efficiency, and is naturallyconvection cooled for totally silent and maintenance-free continuous operation. It can be ceiling or wallmounted for permanent installation, or set up on an optional tripod for portable application. Multipleradiators can easily be daisy-chained together to expand coverage. The radiator unit is easy to maintainand clean, with IR emitting diodes protected by the cover plate.

• Frequency band: 2.0 MHz - 6.0 MHz
• IR output power: 15W
• Switchable output level: Low/High (50%/100%)
• Coverage range: up to 25 meters
• Angle of half intensity: ±22°
• RF output impedance: 55-75 ohms
• RF input voltage: 100-2000mV
• Power consumption: 55W / Stand-by 8W
• Power Supply: 110V/220VAC, 50-60Hz
• Operating temperature: 0℃-40℃
• Cable: 75Ω-4 coax, BNC connectors
• Dimension: 450 × 211 × 82 mm (W×H×D)
• Weight: 3.8 kg
