Rentals Sales



  Portable microphone systems

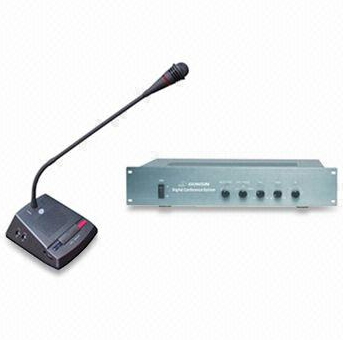

TL-V3000 digital discussion system with built-in loudspeaker and video matrix switcher

TL-V3000 digital discussion system

* Interference resistant with dual shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* Three selectable operating modes
* Simultaneous active microphones from 1 to 5
* Supports automatic camera tracking
* Complies with IEC industry standards
* Easy to set up and simple to operate
* Multiple selectable microphone modes
* Built-in loudspeaker for each conference unit
* System can function with or without computer control
* Central unit with built-in video matrix switcher
* All circuit boards in anti-corrosive and moisture-resistant

More information

TL-V6000 conference system: Microphone Discussion System with Internal Loudspeaker, Headphone Monitoring and Pluggable Stem

TL-V6000 conference system

* Integrated with microphone discussion and electronic voting
* LCD display
* Internal loudspeaker
* Headphone monitoring
* Pluggable stem
* Chip-card reading
* Video switching and camera tracking
* Digital recording and software control
* Used for multi-functional conferencing solution

More information

TL-VB4000 discussion-voting system: Digital Conference System with Electronic Voting Facilities and Video Camera Tracking

TL-VB4000 discussion-voting system

* Supports up to 65 terminals
* Maximum capacity of 250 terminals
* T-bus cable connection
* Dynamic LCD status display
* Frequency response: 50 to 18KHz
* Sensitivity: -46dB + 4dB (-4dB)
* Optimal pickup range: 10 to 30cm
* Delegate registration by key/button or chip card
* Microphone modes: request, waiting and free
* Voting modes: voting, evaluation and election

More information

TL-VB6000 conference system: Conferencing Systems, Integrated with Microphone Discussion and Electronic Voting Function

TL-VB6000 conference system * Integrated with microphone discussion and electronic voting
* LCD display
* Internal loudspeaker
* Headphone monitoring
* Pluggable stem
* Chip-card reading
* Video switching and camera tracking
* Digital recording and software control
* Used for multi-functional conferencing solution







TL-VC4000 discussion & translation: Digital Conference System with Simultaneous Interpretation in 6 Languages

TL-VC4000 discussion & translation

* Easy to set up and simple to operate
* Dual-shielded cable for interference resistance
* Multiple selectable microphone modes
* High-fidelity digital audio quality
* Easy selection of six language channels
* Central unit with built-in video matrix switcher
* Automatic camera control
* 8,000V (HBM) electrostatic discharge (ESD) resistance
* All circuit boards in anti-corrosive and moisture-resistant design
* Complies with the IEC industry standards



TL-VCB4000 full-function system: Integrated Conference System with Electronic Voting and Simultaneous Interpretation Functions

TL-VCB4000 full-function system * Easy to set up and simple to operate
* Dual-shielded cable for interference resistance
* Multiple selectable microphone modes
* Multiple voting types and options
* Six channels language distribution
* High fidelity digital audio quality
* Central unit with built-in video matrix switcher
* Automatic camera control supported
* ESD (electrostatic discharge resistance): 8,000V (HBM)
* All circuit boards in anti-corrosive, moisture-proof design
* Complies with the IEC industry standards







TL-VDCB6000
TL-VDCB6000

* Any delegate unit can be preset as vice-chairman unit
* Push button for attendance registration & mic on/off
* 5 buttons for yes/no/abstain and multi-choice voting
* Up/down buttons for 6-language channel selection
* Unidirectional electret condenser microphone
* Red ring luminant to indicate active microphone
* Pluggable gooseneck microphone stem
* Built-in 2W/8Ω loudspeaker w/ level control
* 3.5 mm jacks for earphone & recording w/ level control
* Loudspeaker is auto turned off when mic is on or earphone is connected
* 65x32mm back-lit LCD screen
* Built-in chipcard reader for user identification
* Supports automatic video camera tracking
* Frequency response: 50-18kHz
* S/N ratio: -95dB/1mV
* Sensibility: -46?4dB
* Power input: 24V DC
* Effective pick-up range: 0-600 mm
* Standard stem length: 425 mm
* Dimensions: 205*60*130mm (W*H*D)
* 13-p captive cable length: 1.5m



TL-VQ5100 discussion system: Digital Conference System: Single Cable Daisy-chain Interconnection

* Single cable daisy-chain interconnection
* Interference-resistant with dual-shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* User identification by chip card
* Multiple selectable microphone modes
* Simultaneous active microphones from one to five
* Central unit with built-in video matrix switcher
* Supports automatic camera tracking
* Complies with IEC industry standards





TL-VQB5100 discussion-voting system: Digital Conference System with Voting Facilities for Flush-mount Installation

TL-VQB5100 discussion-voting system

* For flush mount installation
* Supports up to 70 terminals
* Maximum capacity of 150 terminals
* T-bus cable connection
* Dynamic LCD status display
* Frequency response: 50Hz to 18kHz
* Sensitivity: -46dB + 4dB (-4dB)
* Optimal pickup range: 10 to 30cm
* Delegate registration by key/button or chip card
* Microphone modes: request, waiting and free
* Voting modes: voting, evaluation and election





TL-VXCB6000 chairman unit

TL-VXCB6000 chairman unit

* Push button for attendance registration & mic on/off
* Priority button to mute/override active delegate units
* 5 buttons for yes/no/abstain and multi-choice voting
* Up/down buttons for 6-language channel selection
* Unidirectional electret condenser microphone
* Red ring luminant to indicate active microphone
* Pluggable gooseneck microphone stem
* Built-in 2W/8Ω loudspeaker w/ level control
* 3.5 mm jacks for earphone & recording w/ level control
* Loudspeaker is auto turned off when mic is on or earphone is connected
* 65x32mm back-lit LCD screen
* Built-in chipcard reader for user identification
* Supports automatic video camera tracking
* Frequency response: 50-18kHz
* S/N ratio: -95dB/1mV
* Sensibility: -46?4dB
* Power input: 24V DC
* Effective pick-up range: 0-600 mm
* Standard stem length: 425 mm
* Dimensions: 205*60*130mm (W*H*D)

TL-V4000 digital discussion system: Digital Conference System Supports Automatic Video Tracking of the Speaking Delegate
TL-V4000 digital discussion system

?Key Specifications/Special Features:
* Interference-resistant with dual-shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* User identification by chip card
* Multiple selectable microphone modes
* Simultaneous active microphones from one to five
* Central unit with built-in video switcher
* Supports automatic camera tracking
* Complies with IEC industry standards



TC-ZB1 central control unit
TC-ZB1 central control unit

* Control & power supply unit with 19" rackmount chassis
* Master, treble, bass volume level control
* 3 operating modes can be selected on the front panel
* FSC function to prevent acoustic feedback
* 1/2/3/4 simultaneous active delegate units can be preset
* Connects conference units in up to 4 lines
* DB25 connectors for interpreter unit & IR/DSSS system
* RS-232 port for computer control
* RS-485 port for dome camera control
* Built-in automatic video matrix switcher
* PTZ protocol Pelco-P9600 compatible
* 4 BNC sockets for AV input: 1Vpp 75Ω
* 2 RCA sockets for AV output: 1Vpp 75Ω
* 128 preset positions for automatic camera tracking
* RCA recording audio outputs: 0-2.8Vpp
* AC power requirement: 110/220V, 50/60Hz
* Maximum power: 300W
* Frequency response: 50-18kHz
* S/N ratio: -95dB/1mV
* Distortion at 1kHz: < 0.3%
* Operating temperature: -20 to 50?
* Dimensions: 423*90*320mm (W*H*D)

TL-VCB6000: digital conference system (DISCUSSION + INTERPRETATION + VOTING)

TL-VCB6000: digital conference systemTL-VCB6000: digital conference systemGONSIN TL-VCB6000 digital conference system offers a multi-functional integrated conferencing solution that combines microphone management, delegate discussion, electronic voting, simultaneous interpretation, language distribution, attendance registration, chairman priority, LCD display, built-in loudspeaker, headphone monitoring, chipcard reading, video switching, camera tracking, digital recording and software control.

The basic system on one central control unit supports up to 60 delegate units and 5 interpreter units, and can be expanded to 200 delegate units with additional extension units. Multiple control units can be cascaded together to support up to 1000 delegate units. It can seamlessly interface with GONSIN IR/DSSS wireless transmission system to provide simultaneous interpretation for additional participants.

The system runs with or without PC/software control.



Functional features without software:

# 1 chairman & 10 vice-chairman units can be used in a system
# Chairman/vice-chairman units can be active at any time
# Simultaneous active delegate microphones from 1 to 4
# Chairman unit can override/mute all the active delegate units
# Delegates can select 6 channels for 6 different languages
# LCD display of conference and user-related information
# Up to 4 dome cameras can be supported to track the speaking delegate
# Three selectable microphone modes are available for delegate discussion:
# OPEN - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. The delegate microphones more than the preset number cannot be activated and are unable to register a request to speak.
FIFO - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. On a FIFO (first in first out) basis, any delegate can override another delegate simply by activating the microphone, but cannot override the chairperson.
OPERATOR - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. Up to 8 delegates more than the preset number can register a request and wait to speak, and can be switched off manually to cancel the request.

Functional features with operator/software control:

* Centralized microphone management
* Chipcard reading for user identification
* Attendance registration using IC card or mic button
* Two registration modes - dynamic and countdown
* Operator control over delegate request-to-speak list
* 1 chairman & 10 vice-chairman units can be used in a system
* Chairman/vice-chairman units can be active at any time
* Simultaneous active delegate microphones from 1 to 4
* Chairman unit can override/mute all the active delegate units
* Delegates can select 6 channels for 6 different languages
* Delegate speaking time limit can be preset or controlled by operator
* Attendance registration by inserting IC card or pushing MIC button
* Dynamic registration mode and countdown registration mode
* LCD display of conference and user-related information
* Up to 4 dome cameras can be supported to track the speaking delegate
* HDD (hard disk drive) recording via PC/software
* Different voting types and options:
* - Parliamentary voting, ordinary election, multi-choice: YES/NO/ABST
- Quick election: 1/2/3/4/5
* Dynamic voting mode or countdown voting mode
* First keypress valid mode or last keypress valid mode
* Display of voting procedures & results on terminal LCD and hall screen
* Three microphone modes are available for delegate discussion:
* Request to Speak - allows to set the number of simultaneous active delegate microphones from 1 to 4. The delegate microphone cannot be activated until a registered request is allowed by the operatot or chairperson.
* Wait to Speak - the first delegate to push the MIC button gets the floor and the other delegates have to wait in queue. Only one delegate is allowed to speak at one time.
* Free to Speak - the first 4 delegates who request to speak can push to talk freely. The next one cannot be active until the last one is turned off.

?Lightweight headphones for under the chin use
? Fitted with 1.2 m (47.2 in) cable terminated with 3.5 mm (0.14 in) jack plug.


GX-2200H: color speed dome camera
GX-2200H: color speed dome camera

?The GX-2200H is a hi-speed, hi-resolution pan/tilt/zoom (PTZ) dome camera which can be integrated with GONSIN digital conference systems to be used for multi-camera automatic video tracking applications during the conference.
The camera management software is programmed to control the camera to focus on the speaking delegate. Before the conference begins, the camera is pre-set to get the monitoring points at desired angles. When the delegate unit is activated, the speaker will be shown on the large display screen through signal transmission to the projector. The whole tracking process is simple and effective.
A full range of correction features including backlight compensation (BLC), aperture correction, and auto tracing white balance (ATW) ensure crisp color images in dark or backlit environments.

Main Features
* Compact design at only 5"
* High resolution, low-light DSP camera
* Switchable from color to b/w
* Continuous auto focus
* Intelligent, powerful 264X zoom
* High-speed pan, tilt and zoom
* 360? continuous rotation
* Automatic 180? flip circuitry
* Mimic tours for unattended operation
* Built-in code translator
* Multi-protocol support
* RS-485 remote control

Technical SpecificationsCamera
* Image sensor: color 1/4" CCD
* Horizontal resolution: 580 TV lines
* Min illumination: 0.01 Lux (F1.6)
* Effective pixels: 752H x 582V, 440k pixels, PAL
* S/N ratio: >48db
* Sync System: Internal Sync.
* Video out: Composite 1.0V (p-p) 75 Ohms
* White balance: Auto/Manual
* Backlight compensation: Automatic
* Scanning systems: 2:1 interlace
* Scanning frequency: H 15.625KHz, V 50Hz
Lens
* Standard lens: 3.6mm
* Shutter speed: 1/3 to 1/100,000 second
* Zoom: optical 22X, digital 12X
* Focus and iris: Auto/Manual
Operational
* Horizontal pan speed: 0~300?/second
* Vertical tilt speed: 0~60?/second
* Programmable preset positions: max.128
* Programmable preset tours: up to 6
* Mimic tour: 40 seconds
Electrical
* Power supply: 24VAC?10%,1.25A
* Power consumption: 30VA
Environmental
* Relative humidity: 10% to 75%
* Operating temperature: 0?C to 40?C
Mechanical
* Housing: ABS plastic housing, black and white available
* Mounting type: indoor ceiling-mount or wall-mount



Bosch CCS-800 analog conference microphone system

Bosch CCS-800 analog conference microphone system This is an economic, high-quality electronic microphone system. The interface is user-friendly, the plug and play design is simple to install and extremely versatile.

The system can be configured to allow up to 150 microphones (50 microphones per central control unit at a maximum of 3 CCU's per system) and the double headphone socket and flexible microphone stem allows two people to use the same delegate unit. Settings for microphone prioritization and number of open microphones allows for automatic management of the proceedings.

The CCS 800 is best suited for small-to-medium sized meetings and conferences such as local government councils, hotel conference rooms, training and educational venues and company board rooms.

Please click on the links below for more information:

CCS800 Discussion System
CCS 800 Data Brochure
CCS 800 Commercial Brochure
CCS 800 Extension
CCS 800 Congress System
CCS 800 Digital Feedback Suppression
CCS 800 Ultro



LS-70 portable conference system

LS-70 portable conference system

The LS-70 is a portable conference system for nine (9) delegates and one (1) chairman is ideal for city councils, school boards or boardrooms. The LS-70 system operates in push-to-talk mode and is fully functional without any additional parts. Its simple design allows it to be set up in a matter of minutes and does not require an operator.

Features:

Illuminated red ring for easy speaker identification, clearly visible even in broadcast lighting.
Push-to-talk operation introduces structure to the meeting.
“Daisy Chain” loop-through cabling.
Different operating modes with request-to-speak queuing.
Chairman unit with priority override.

Specifications

LS-71 portable conference system
LS-71 portable conference system

The LS-71 is a portable conference system for 98 delegates and two (2) chairmen. This system operates in push-to-talk mode and is by far the easiest and most cost-effective way to place one hundred microphones in one room. It is ideal for corporate training centers, rental companies and break-out or committee rooms. The LS-71 system is fully functional without any additional parts and can be set up in a matter of minutes. It can be operated stand-alone or by PC with an operator.

Features::

Illuminated red ring for easy speaker identification, clearly visible even in broadcast lighting.
Push-to-talk operation introduces structure to the meeting.
“Daisy Chain” loop-through cabling.
Different operating modes with request-to-speak queuing.
Chairman unit with priority override.



Specifications



CM 4410 P CDS

CM 4410 P CDS



The CM 4410 P is a portable conference chairman unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings. The unit features a built-in high-quality loudspeaker and a fixed 14.2 in. (36 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status. Each unit enables the conference chair to speak, register a request-to-speak, listen to other speakers and override delegates with the priority button. The unit can either be controlled by the microphone button or remotely by the operator. The microphone button has two LEDs to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. A 6.6 ft. (2.0 m) cable is permanently connected to each unit to allow for quick and easy installation of units.



Features:

lluminated red ring - identifies speaker easily
Push-to-talk operation introduces structure
“Daisy Chain” loop-through cabling
Proprietary microphone design eliminates handling noise

Specifications



DM 4410 P portable conference delegate unit

DM 4410 P portable conference delegate unit

The DM 4410 P is a portable conference delegate unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings. The unit features a built-in high-quality loudspeaker and a fixed 14.2 in. (36 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status. Each unit enables participants to speak, register a request-to-speak and listen to other speakers. The unit can either be controlled by the delegate by the microphone button or remotely by the operator/conference chair. The microphone button has two LEDs to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. A 6.6 ft. (2.0 m) cable is permanently connected to each unit to allow for quick and easy installation of units.



Features::

Illuminated red ring - identifies speaker easily
Push-to-talk operation introduces structure
“Daisy Chain” loop-through cabling
Proprietary microphone design eliminates handling noise

Specifications

DM 4450 Portable conference delegate unit

DM 4450 Portable conference delegate unit

The DM 4450 P is a portable conference delegate unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings. The unit features a built-in high-quality loudspeaker and a fixed 19.7 in. (50 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status. Each unit enables participants to speak, register a request-to-speak and listen to other speakers. The unit can either be controlled by the delegate, via the microphone button, or remotely by the operator. The microphone button has two LEDs to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. A 6.6 ft. (2.0 m) cable is permanently connected to each unit to allow for quick and easy installation of units.

Features:

Illuminated red ring - identifies speaker easily.
Push-to-talk operation introduces structure.
“Daisy Chain” loop-through cabling.
Proprietary microphone design eliminates handling noise.
Elegant, unobtrusive, black units.





Specifications



FD 4010 F

FD 4010 F

The FD 4010 F Delegate Flush Panel is a cost-effective way to permanently flush mount a loudspeaker, a microphone and microphone button. Made of 2.5 mm black anodized aluminum, the panel is very unobtrusive. Each unit enables participants to speak, register a request-to-speak and listen to other speakers. The unit can either be controlled by the delegate with the microphone button or remotely by the operator/conference chair. The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. Mounting is easy with available screw holes on all four corners of the unit. A single 3.3 ft. (1 m) cable is provided to connect to the under-the-table MU 4040 (CDS 4000) or MU 6040 C/D (DCS 6000) control box. The panel can be customized to fit your specific application.



Features:



Illuminated red ring - identifies speaker easily
Push-to-talk operation introduces structure
Proprietary microphone design eliminates handling noise
High quality loudspeaker in unit
Elegant, unobtrusive, black units

Specifications



FD 4011 F
FD 4011 F

The FD 4011 F Delegate Flush Panel is a cost-effective way to permanently flush mount a microphone and microphone button. Made of 2.5 mm black anodized aluminum, the panel is very unobtrusive. Each unit enables participants to speak and register a request-to-speak. The unit can either be controlled by the delegate with the microphone button or remotely by the operator/conference chair. Mounting is easy with available screw holes on all four corners of the unit. A single 3.3 ft. (1 m) cable is provided to connect to the under-the-table MU 4040 (CDS 4000) or MU 6040 C/D (DCS 6000) control box. The panel can be customized to fit your specific application.





Features:

Illuminated Red ring for easy speaker identification, Clearly visible even in broadcast lighting
Push-to-talk operation introduces structure to the meeting
Remote control via easy-to-use PC application
Proprietary double rubber band capsule suspension microphone eliminates handling noise

Specifications



MasterCard Visa American Express Discover
Free shipping on equipment purchases over $100
