TC-Z906 infrared transmitter
The microprocessor based TC-Z906 infrared transmitter is able to modulate and transmit 6 sound
channels to different carrier frequencies
 It features built-in IR test diodes for audio monitoring and
testing of receivers, built-in automatic level control (ALC) to ensure comfortable listening levels,
independent channel level control, independent channel output level LED indicators, and independent
channel audio output sockets for sound recording.
Test mode produces a different frequency tone for
each input/channel. Up to five interpreter consoles can be connected to the transmitter in one single
daisy chain.
- Modulation mode: FM
- Frequency synthesis: digital PLL
- Frequency band: 2.0 MHz - 6.0MHz
- Frequency response: 100Hz-14kHz
- Frequency stability: 10ppm
- Pre-emphasis: 75 μSec.
- Peak deviation - ±7.5kHzs
- Distortion at 1 kHz: <0.5%
- Channel separation: >70dB
- RF output power level: 700mV
- RF output impedance: 55-75 ohms
- Input impedance: 18k ohms
- Max. input power level: 7.5V
- AGC range: 30dB
- S/N ratio: >75dB
- Power consumption: 40W
- Powe requirement: 110/220VAC, 50-60Hz
- 19" rack mountable case
- Dimension: 430 × 99 × 325 mm (W × H × D)
- Weight: 7.6 kg
Infrared radiators can be linked up in two lines via two BNC sockets on the rear panel.

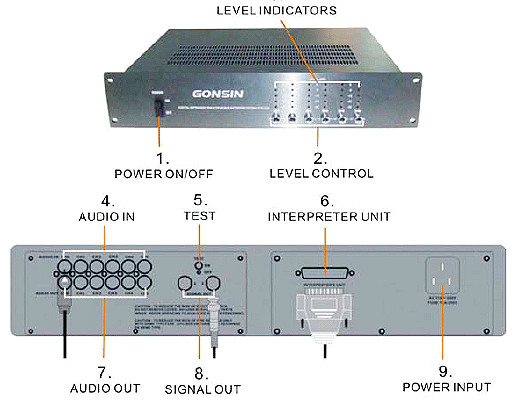

| FRONT VIEW |
| 1 |
POWER |
Power ON/OFF switch and indicator |
| 2 |
CHANNEL LEVEL CONTROL |
Level control for each audio channel |
| 3 |
CHANNEL LEVEL INDICATORS |
Output level LED indicators for each audio channel |
| REAR VIEW |
| 4 |
AUDIO IN |
Unbalanced audio input RCA sockets (CH 0,1,2,3,4,5) |
| 5 |
TEST |
ON/OFF switch for channel signal testing of receivers. |
| 6 |
INERPERETER UNIT |
Female DB25 port to connect male port on interpreters unit’s rear panel. |
| 7 |
AUDIO OUT |
Unbalanced audio output RCA sockets (CH 0,1,2,3,4,5) |
| 8 |
SIGNAL OUT |
RF output BNC socket to connect the radiator |
| 9 |
POWER INPUT |
AC power input socket (110V/220V) |
|
|
