DM 6560 digital
conferencing/simultaneous interpretation
systems

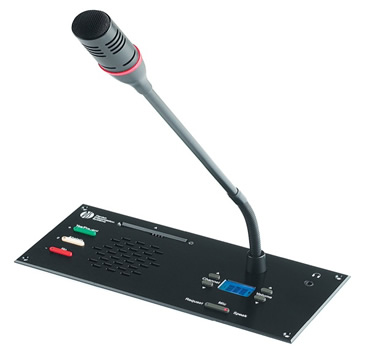

The DM 6560 F Delegate Flush Unit is a
cost-effective way to permanently flush mount
a loudspeaker, a fixed microphone with microphone
button, yes/no/abstain voting buttons, a channel
selector and chip card reader.
Made of black anodized
aluminum, the unit is very unobtrusive.
Each unit
enables participants to speak, register a request-to-speak,
listen to other speakers, cast a vote and listen
to language channels.
The unit can either be controlled by the microphone
button or remotely by the operator/conference
chair.
The gain/sensitivity of the microphone/loudspeaker
can be remotely controlled by the operator.
The
microphone button contains an LED to indicate
whether the unit is on (RED) or in the request-to-speak
queue (GREEN).
The loudspeaker is automatically
switched off when the microphone is activated
to prevent acoustic feedback.
Mounting is easy
with available screw holes on all corners of the
unit.
The units can be easily daisy chained with
shielded FTP or STP Cat-5e cables (sold separately)
and can be customized to fit any application.
