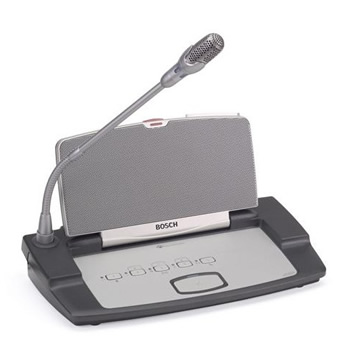

Bosch DCN-CON basic delegate conference unit

The DCN-CON Basic is the standard delegate conference unit that enables delegates to speak, register a request-to-speak, register a response request, listen to thespeaker and vote.

A socket is provided to connect the pluggable microphones (DCN-MICS and DCN-MICL, to be ordered separately). The flat-panel loudspeaker offers superior acoustics with minimal feedback, thus increasing intelligibility. It is automatically muted when the microphone is activated. When the unit is not being used, the loudspeaker panel conveniently folds down.

There are five voting buttons for all kind of voting. An external contact is available to connect external fingerprint readers.

Features:

• Low susceptibility to mobile phones
• Compact, attractive delegate unit
• Built-in fold-away flat-panel loudspeaker
• Five voting buttons
• Cable connections located underneath the unit
• External present and fraud contact

Functions controls and indicators:

• Built-in, fold-away, flat-panel loudspeaker, automatically muted if the microphone is on
• Microphone ‘on/off’ or ‘request-to-speak’ button
• Microphone on’ indicator at the top of the loudspeaker
• Tri-color indicator above the microphone button:
  • - Red ‘Microphone on’ indicator
  • - Green ‘Request-to-speak’ confirmation indicator
  • - Yellow ‘VIP’ indicator. ‘VIP’ LED is lit when the delegate unit is part of the notebook, which is only available when PC control software is used
• Five voting buttons with yellow LED confirmation indicators These can be used to register:
  • - PRESENT, YES (+), NO (-), ABSTAIN (X), (parliamentary voting)
  • - Numerals: 1 to 5 (multiple choice or opinion polls)
  • - Rating scale: - -, -, 0, +, ++ (audience response)
• Connections Socket for pluggable microphone
• 2 m (78.7 in) cable terminated in a molded six-pole circular connector
• Six-pole circular connector for loop-through connections
• Eight-pole modular jack connector for Intercom Handset LBB 355/00
• External present and Fraud contact e.g. a fingerprint reader
